Inverter Current Injectors vs. Transformer-Based Systems: Myth, Reality, and the DTE-M Advantage

In recent years, high-frequency inverter-based current injectors have entered the primary injection market with bold promises: ultra-lightweight boxes, high output claims, and sleek digital displays.

At first glance, a compact inverter box sounds like a game-changer for field testing engineers. But when you take these devices out of the lab and onto real-world industrial sites, many technicians discover a frustrating reality: benchtop specifications do not always translate to successful field testing.

Why were inverter-type injectors created in the first place? What are their hidden engineering trade-offs? And why does a full range of classic line-frequency transformer systems—like the DTE-3M, DTE-10M, and DTE-20M—remain the superior, most reliable choice for primary injection testing across all current levels? Let’s break it down.

1. Why Did Inverter Current Injectors Appear?

To understand inverter injectors, you have to look at the engineering problem they were designed to solve: weight.

Traditional primary current injection sets rely on heavy 50/60 Hz power transformers to step down mains voltage and step up output current. Because low-frequency transformers require iron cores and copper windings to prevent magnetic saturation, these machines have inherent physical weight.

Inverter systems solve the weight issue by using High-Frequency (HF) switching technology:

  1. AC to DC Conversion: Incoming power-frequency AC is rectified into DC.
  2. High-Frequency Inversion: Fast-switching transistors (IGBTs or SiC MOSFETs) convert DC into a high-frequency AC signal (20 kHz to 50 kHz).
  3. Miniaturized Transformer: Because transformer size is inversely proportional to operating frequency, a 30 kHz transformer is a fraction of the size and weight of a 50 Hz transformer.
  4. Output Synthesis: The high-frequency output is modulated back into a 50 Hz waveform using Pulse-Width Modulation (PWM).

The Result: Manufacturers can build a lightweight unit that looks impressive on paper for single-person transport.

2. The Hidden Trade-offs of Inverter-Type Injectors

While inverters solved the weight problem, they introduced significant operational compromises that directly impact field performance:

  1. Extremely Low Output Compliance Voltage 1.5-2.5 V: To keep inverter power circuits from overheating, manufacturers drop the output compliance voltage to absolute minimum levels. While a unit might output high current in a lab with 30 cm busbars, in the field, connection resistance, oxidized breaker stabs, and standard test leads quickly push loop impedance beyond what 1.5V can overcome. The inverter hits its voltage ceiling and fails to deliver the target current.
  2. PWM Switching Noise and Harmonics:Synthesizing a 50 Hz sine wave via high-frequency pulse modulation creates residual high-frequency harmonics (20-50 kHz). Modern microprocessor-based trip units (such as Schneider Micrologic, ABB Ekip, or Siemens ETU) rely on precise RMS sampling. High-frequency noise from inverter sources can cause these electronic trip units to measure incorrectly or trip prematurely.
  3. Vulnerability to Inductive Back-EMF and Surges:Silicon power transistors (IGBTs) are sensitive to voltage spikes and sudden current drops caused by opening inductive breaker contacts. A sudden arc or back-EMF spike can destroy an inverter's power bridge in microseconds.
  4. Limited Short-Term Impulse Capacitance:Inverters are strictly limited by their electronic protection circuits. They cannot safely deliver massive 10-20x times short-circuit current surges required for testing instantaneous magnetic trip zones (I >>) without tripping their internal overcurrent protection.

3. The DTE-M Series: Scaled Solutions for Every Testing Requirement

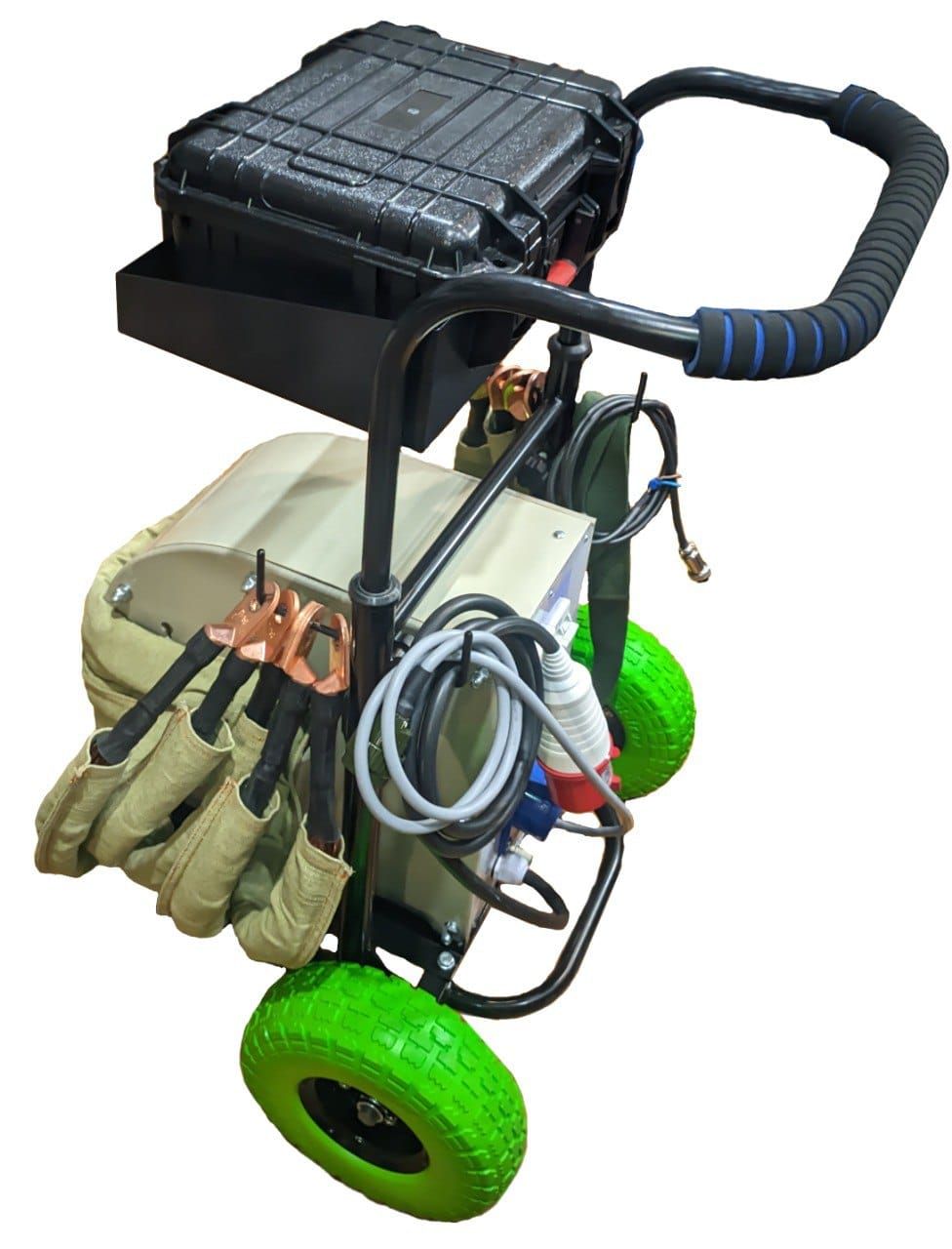

Instead of sacrificing output drive for slight weight savings, the DTE-M Series utilizes heavy-duty, direct line-frequency transformer architecture. Built to handle harsh, unpredictable field conditions, the lineup offers tailored models for every scale of testing:

  • DTE-3M: Primary Target: Portable testing for smaller breaker frames, thermal relays, and low-current protective devices.
  • Output Range: Delivers up to 3,000 A short-term impulse current.
  • Field Role: Highly mobile unit ideal for routine maintenance, quick site checks, and smaller distribution boards where ease of setup and reliable current drive are key.
  •  DTE-10M:Primary Target: Mid-range primary injection for medium MCCBs and industrial circuit breakers.
  • Output Range: Delivers up to 10,000 A short-term impulse current.
  • Field Role: The versatile workhorse for general plant maintenance, offering the ideal balance of high surge headroom and portability for everyday field commissioning.

  • DTE-20M: Primary Target: Heavy-duty primary injection for large MCCBs and Air Circuit Breakers (ACBs).
  • Output Range: Delivers up to 20,000 A short-term impulse current and up to 4,000 A continuous current.
  • Field Role: High-power field unit capable of driving massive instantaneous surges and running prolonged thermal overload tests on large industrial switchgear..

4. Why the DTE-M Series Outperforms Inverters in the Field

Regardless of the model size you choose, the entire DTE-M Series provides distinct engineering advantages over inverter alternatives:

  1. Superior Compliance Voltage (7 V AC Output Drive):Unlike inverters stuck at 1.5 V, DTE-M injectors maintain high output voltage headroom. This allows you to push full target current through real-world contact resistance, longer test leads, and field switchgear without stalling out.
  2. Massive Short-Term Surge Capacity:When testing instantaneous/magnetic trip thresholds (I_i) on MCCBs and ACBs, you need raw peak current. From the compact DTE-3M (3 kA) up to the heavy-duty DTE-20M (20 kA), the transformer architecture handles high impulse surges naturally without tripping electronic protection.
  3. Pure Power-Frequency Sine Wave:Direct transformer conversion produces a clean 50 Hz sine wave with zero high-frequency switching artifacts. Electronic trip units and digital protective relays measure true grid-equivalent current without interference or false tripping.
  4. Rugged, Bulletproof Reliability:With no delicate high-frequency power electronics or complex capacitor banks to fail, the DTE-M series handles dust, moisture, generator voltage fluctuations, and severe inductive switching arcs without breaking down. Field maintenance is straightforward and cost-effective.

Summary: Bench Specs vs. Real-World Capability

Inverter-type current injectors were created for one main reason: portability for light-duty bench work. However, when your job requires driving current through real-world switchgear with non-ideal contact resistance, pure sine wave requirements, and high instantaneous surge demands, lightweight inverters fall short.

Whether you need the compact portability of the DTE-3M, the mid-range versatility of the DTE-10M, or the heavy-duty power of the DTE-20M, the DTE-M Series remains the most practical, reliable, and effective choice for serious testing engineers. By offering high compliance voltage, massive impulse headroom, and indestructible transformer durability, DTE-M current injectors ensure that when you set a test current, your equipment actually delivers it—every single time.
