Factory Lab vs. Field Testing: The Truth About IEC 60947-2 Circuit Breaker Testing

When it comes to testing high-current circuit breakers—especially heavy-duty molded case (MCCBs) and air circuit breakers (ACBs) rated at 800 A, 1600 A, or 4000 A—there is a common point of confusion in the electrical engineering community.

Many engineers look at standard IEC 60947-2 and assume that field acceptance testing requires blasting a 4000 A breaker with 10x times or 12x times its nominal current—a massive 40,000 A to 50,000 A surge.

However, there is a fundamental difference between Factory Type Testing and Field Maintenance Testing. Understanding this distinction saves time, prevents gear damage, and clarifies why mobile primary current injectors like the DTE-M Series are the industry standard for field operations.

1. The Two Worlds of IEC 60947-2: Factory Labs vs. Field Maintenance

To choose the right testing tool, you must first understand what you are actually testing:

1. Factory Type Testing (Explosion Labs): Conducted by manufacturers in high-power test laboratories (such as KEMA or CESI). The goal here is structural and arc-quenching verification. The lab applies massive short-circuit fault levels (10x times - 12x times or up to 100kA) to prove the physical housing won't explode under extreme grid faults.
2. Field Maintenance & Commissioning Testing: Conducted on-site in substations, industrial plants, or switchrooms. The goal is functional verification: proving that the breaker’s internal Current Transformers (CTs), microprocessor trip unit (LSI settings), and mechanical tripping latch operate properly and trip within specified millisecond tolerances.

In field conditions, attempting to inject 50kA is neither practical nor necessary. Field acceptance focuses on testing the protection logic, not destroying the switchgear.

2. Stationary Lab Rigs vs. Mobile Field Injectors

The equipment needed for these two testing environments could not be more different

1. Stationary Lab Rigs (e.g., 75 kA Class):Primary Purpose: High-power factory type testing and bench repair.Portability: Heavy stationary units, often weighing over 500 kg (1,300 lbs).Facility Power: Requires dedicated high-voltage supply feeds (e.g., 480 V / 400 A).Field Practicality: Impossible to move into tight substations, switchrooms, or offshore rigs.

1. Mobile Field Injectors (DTE-M Series):Primary Purpose: On-site primary injection, commissioning, and routine maintenance.Portability: Fully portable, compact field units designed for transportation.Facility Power: Runs on standard, widely available site power connections.Field Practicality: Easily transported and connected directly to switchgear on-site.

While a stationary lab rig is built for permanent workshops with massive power feeds, field technicians require lightweight mobility without sacrificing compliance voltage or raw surge capacity.

3. How to Test Large Breakers in the Field (The Smart Way)

How do field service teams test a 4000A breaker on-site according to IEC standards using a portable primary injection set?

1. Continuous Thermal Test (Ir): The DTE-20M injects 4000 A AC continuously to verify thermal overload protection and long-time trip curves.
2. Instantaneous Trip Test (Ii): On modern electronic trip units, the instantaneous pickup setting (Ii) is adjustable. Field technicians temporarily adjust the Ii dial down to 2x times or 3x times (8,000A–12,000A).
3. Primary Injection: The tester injects the target current pulse (e.g., 12,000 A). The equipment measures the precise milliseconds it takes for the breaker to open.
4. Restoration: Once trip unit logic and mechanical release are verified, the dial is restored to its operational setting.

This method provides 100% verification of the protection chain while keeping equipment portable and safe.

4. Why the DTE-M Series is Built for Field Success

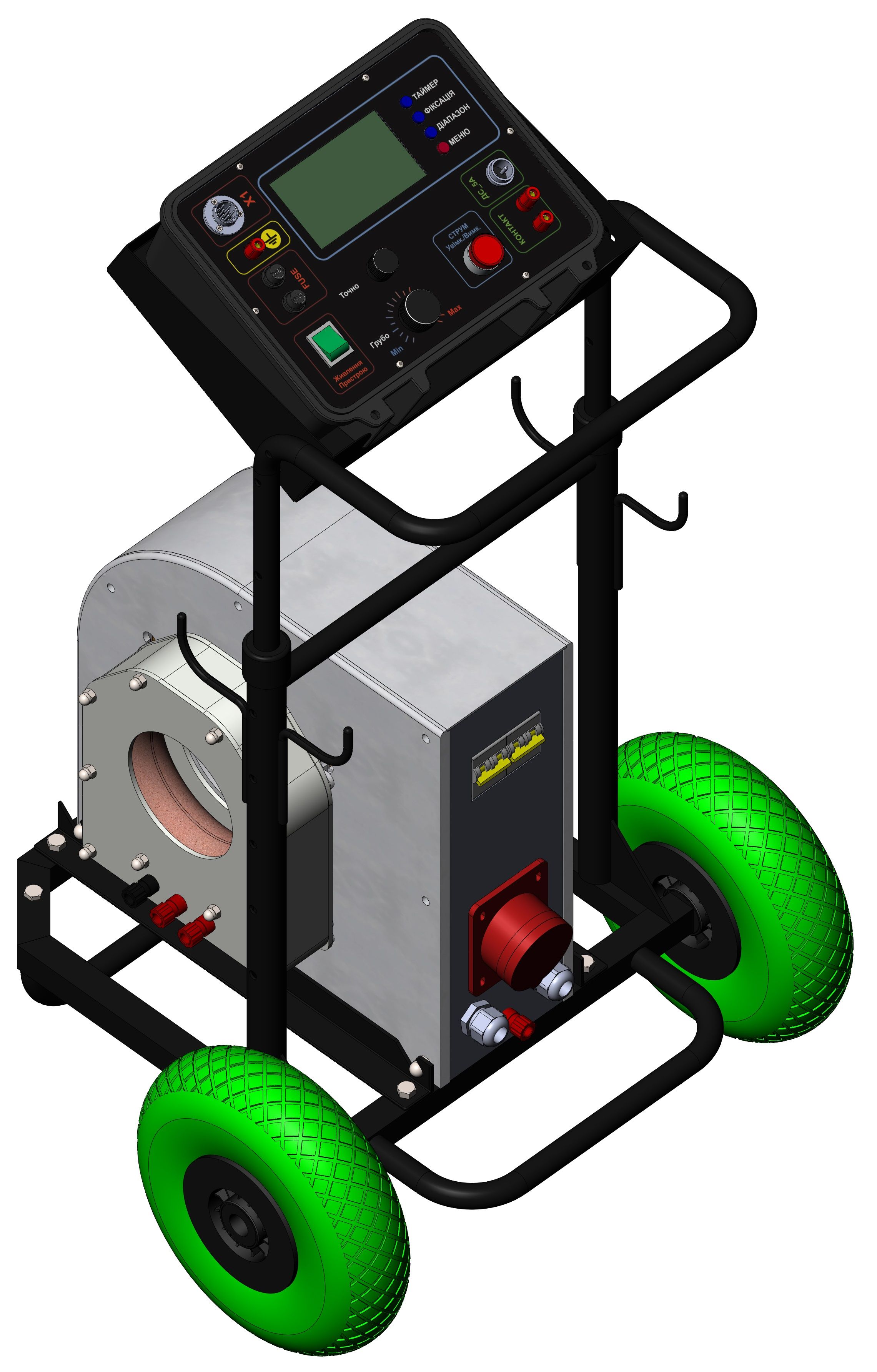

The DTE-M Series primary current injection test sets are specifically engineered to bridge the gap between heavy power requirements and field mobility:

1. High Compliance Voltage (7V AC Output): Many compact electronic testers drop their voltage down to 1.5-2V, making it impossible to drive high currents through real-world contact resistance or longer test leads. The DTE-M series maintains 7V, driving high current through real field setups.
2. Massive Short-Term Impulse Reserve (Up to $20\text{ kA}$): For 800A to 1600A breakers, the DTE-20M drives full 10x times instantaneous surges directly. For 4000A frames, its 20kA pulse output handles adjusted-dial testing with ease.
3. True Power-Frequency Sine Wave: Direct transformer coupling delivers a clean 50Hz sine wave without high-frequency switching noise, preventing false trips on sensitive electronic or microprocessor-based trip units.
4. Rugged Field Reliability: Built without delicate, high-frequency inverter power stages that can blow out under heavy inductive short circuits, the DTE-M series offers long-term durability in tough environments.

Final Thoughts

You don't need a multi-ton laboratory rig to perform thorough, compliant testing under IEC 60947-2. By understanding the difference between factory type tests and field commissioning, field teams can rely on the DTE-M Series to deliver reliable $20\text{ kA}$ primary injection right where it's needed—on site, on time, and with total precision.
